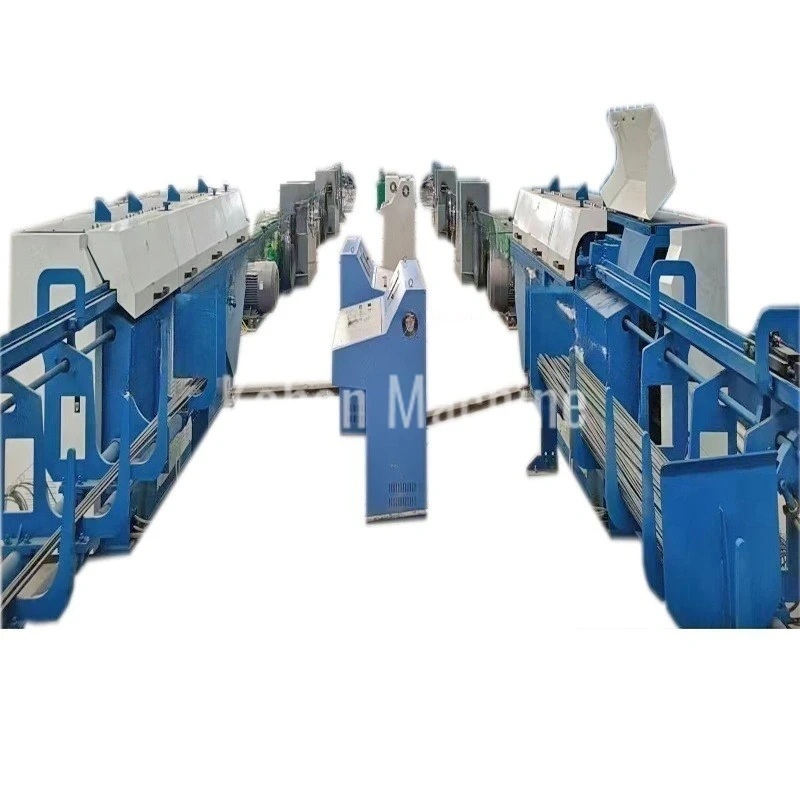

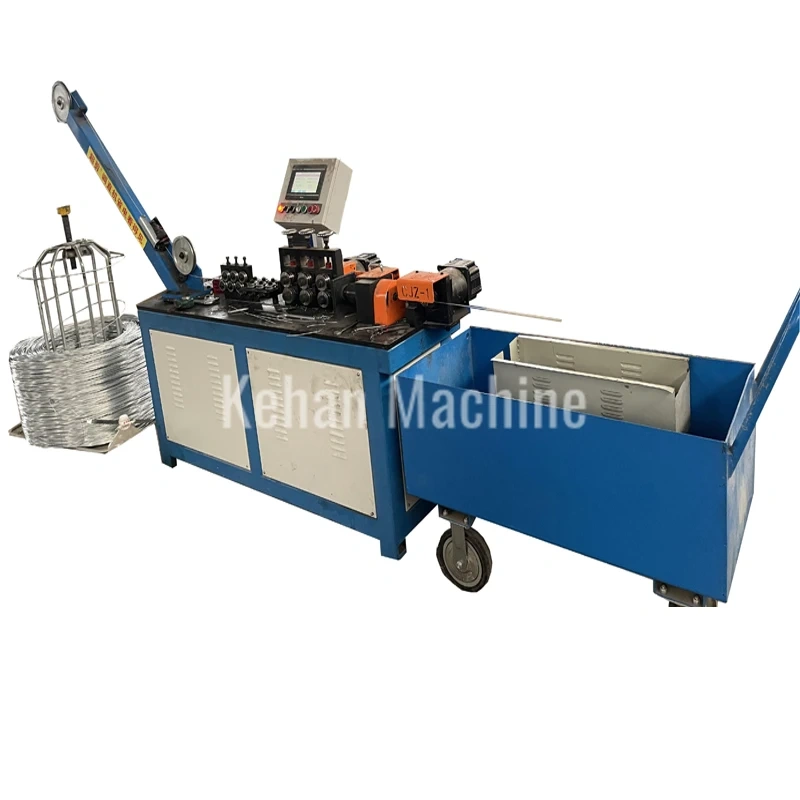

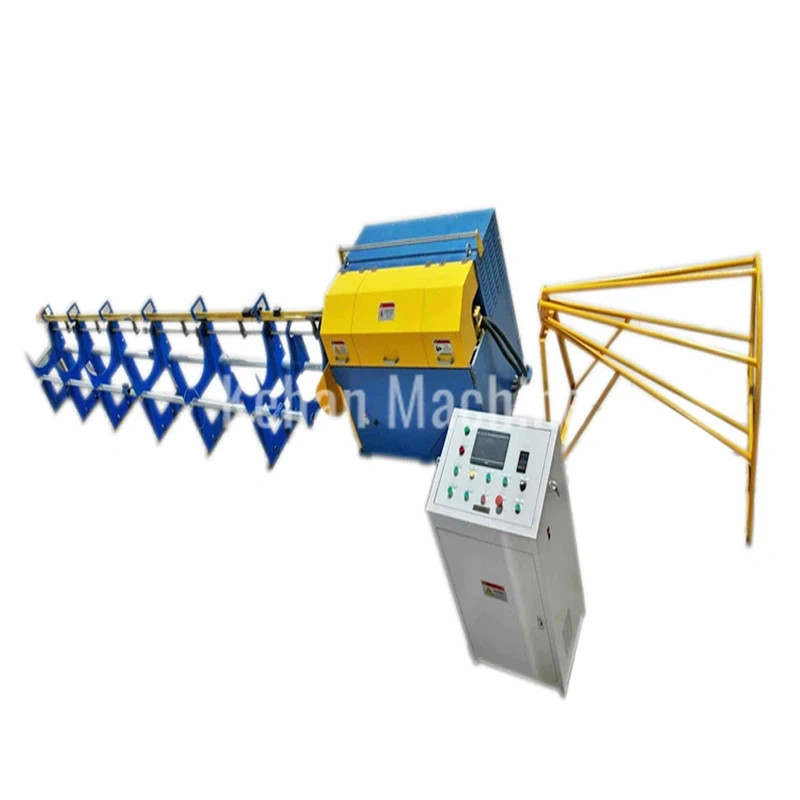

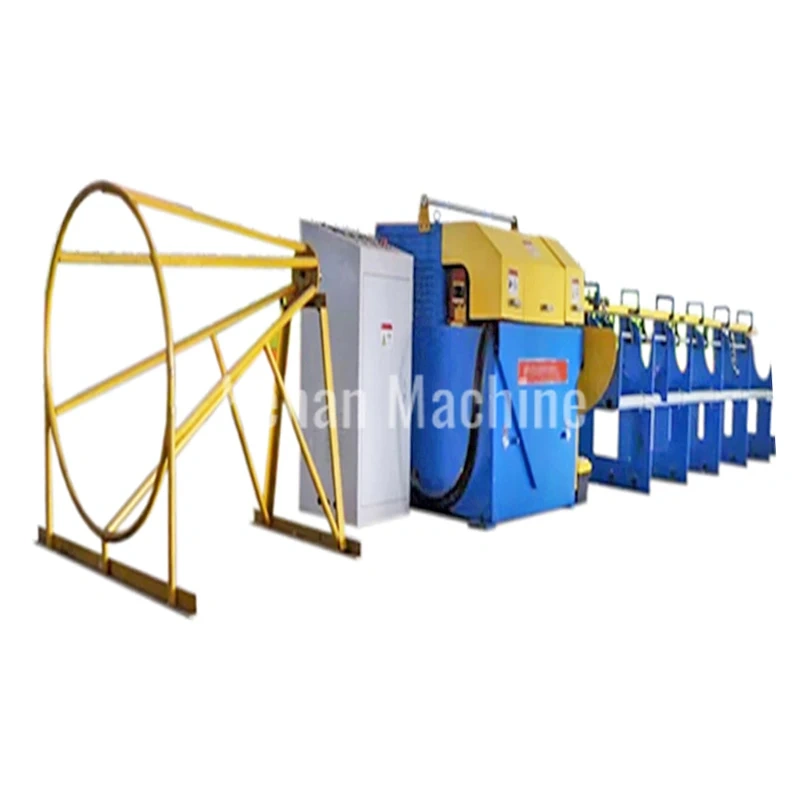

High-Speed Wire Straightening and Cutting Machine mainly straighten and cut off metal wire and rebars as preset length. Specifically, Steel Wire Straightening and Cutting machine consists of frame, feeding mechanism, straightening mechanism, cutting mechanism, receiving rack. Furthermore, the straightening part is composed of straightening shaft, straightening block and bearing blocks. When straightening machine works, the motor and the triangular belt forces straightening shaft to rotate swift.
Wire Straightening and Cutting Machine Performance:
- CNC equipment with HMI and PLC control.
- Processing speed, up to 130 m/min.
- Minimized error in the length of cutting steel bars, ± 1 mm.
- Double-head pulling type, smooth running.
- Adjust the steel bars under 1 meter and pull them out.
- Tungsten steel molds are used for construction wires.
Technical Parameter
|
Model |
GT2-5 |
GT3-6 |
GT3-8 |
GT6-12 |
GT8-14 |
|
Wire diameter (mm) |
2-5 |
3-6 |
3-8 |
5-12 (round rod), 6-10 (ribbed bar) |
8-14 |
|
Cut length (m) |
0.1-3 |
0.7-6 |
0.7-6 |
1-12 |
0.7-12 |
|
Cut error (mm) |
±1 |
±1 |
±1 |
±1 |
±1 |
|
Speed (m/min) |
80-120 |
100-130 |
100-150 |
70-130 |
80-130-150 |
|
Main power (KW) |
4 |
7.5 |
15 |
22 |
37 |
|
Cutting motor (KW) |
3 |
4 |
4 |
7.5 |
7.5 |
|
Overall dimension (m) |
1.2*1*1.2 |
1.5×1.1×1.3 |
1.8×1.4×1.3 |
20×3×1.4 |
30×3×2 |
|
Weight (KG) |
1200 |
1800 |
2500 |
6500 |
7600 |
High-speed wire straightening and cutting machine Features:
- Raw materials
Applicable raw materials are widely available, including low-carbon steel wire, galvanized wire, iron wire.
- Safety shield
All high-speed mechanical parts are covered with shields to avoid danger to operators.

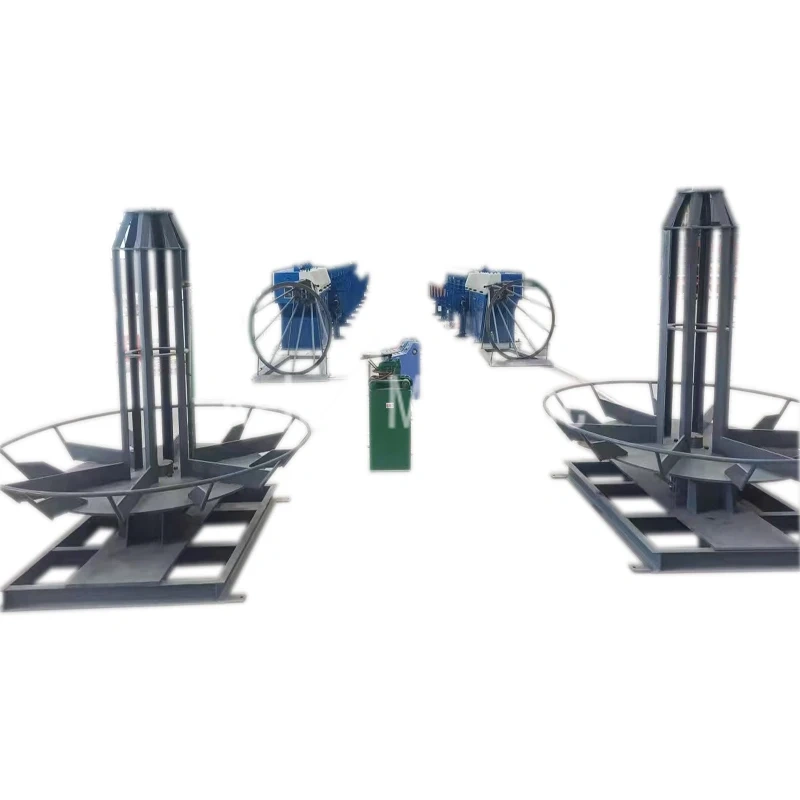

- Wire collection rack
The standard length of the wire collection rack is 3 meters, and we can customize the length of 6 meters and 12 meters according to customer requirements, or even longer.
- Main straightener
After high-tech transformation, the main straightener has low operating noise, not exceeding 40 dB, and the high-speed operating temperature will be stable in a low range for a long time.
- Cutter
The wear-prone parts such as knives are made of special alloys, which ensures the stability of the machinery and improves the service life.
- Control cabinet
The control cabinet can easily adjust the running speed of the machine and the cutting length of the wire.
- Pay-off reel
At the bottom of the pay-off frame, the bearing can withstand more than 1000 kg.
- Pneumatic components
Some mechanical actions are pneumatically controlled to achieve better sensitivity.
- Length accuracy
The length accuracy of wire products can reach ± 1 mm, the wire length is accurate, and the appearance is beautiful.
High-speed Wire Straightening and Cutting Machine Application:
Wire straightening and cutting machine machinery is widely used in high-speed railways, highways, bridges and tunnels, rail transit, underground pipe galleries, nuclear power, hydropower and other large-scale infrastructure construction and prefabricated buildings, steel processing and distribution centers and other fields.
