Steel Grating Welding Machine is also named metal grating welding machine, steel mesh grille machine. Heavy-duty Steel Grating Welding Machine adopts advanced DC medium-frequency transformers and inverter welding technology. Small Type Steel Grating Welding Machine uses industrial frequency welding transformers for lower power supply requirement.
Technical Parameter:
|
Model |
SG-1000 |
SG-1000S |
|
Welding frequency |
1000HZ Medium Frequency |
Industrial Frequency |
|
Speed |
420-480m2 Per Day (8 Hours) |
30-100m2 Per Day (8 Hours) |
|
Welding method |
2 pcs cross bar per stroke |
2 points of one cross bar per stroke |
|
Welding times |
8-9second/stroke |
8-9second/stroke |
|
Cross bar |
round bar/ twisted square bar 5-8mm |
|
|
Cross bar aperture |
35-150mm (customized) |
50-150mm (customized) |
|
Flat bar size |
width 20-100mm, thickness 1-10mm |
|
|
Flat bar aperture |
30-80mm (customized) |
50-100mm (customized) |
|
Grating width |
≤1200mm |
≤1000mm |
|
Grating length |
≤6000mm |
≤6000mm |
|
Rated power: |
350KVA ×10pcs |
250KVA ×2pcs |
|
Power supply |
≥1200KVA |
≥200KVA |
|
Rated current |
2500A |
300A |
|
Welding pressure |
125T(adjustable) |
10T(adjustable) |
|
Cooling water |
500L/min |
50L/min |
|
Compressed air: |
0.63MPa |
0.3MPa |
|
Dimension |
18*5*2.7m |
15*2.5*1.5m |
|
Weight |
13T |
4.2T |
Metal Grating Welding Machine:
Steel Grating Production Line can be customized according to client requirements. the main equipment: steel grating press welding machine, cross bar cutting machine, automatic servo cutting machine, sharpen machine, twist cross bar machine, automatic flat bar teeth punching production line.
Twisted Square Bar Drawing Machine produces cross bar for steel grating panel.

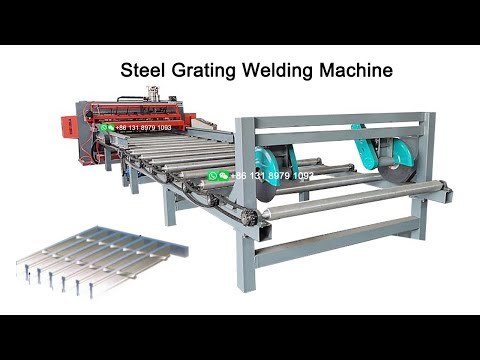

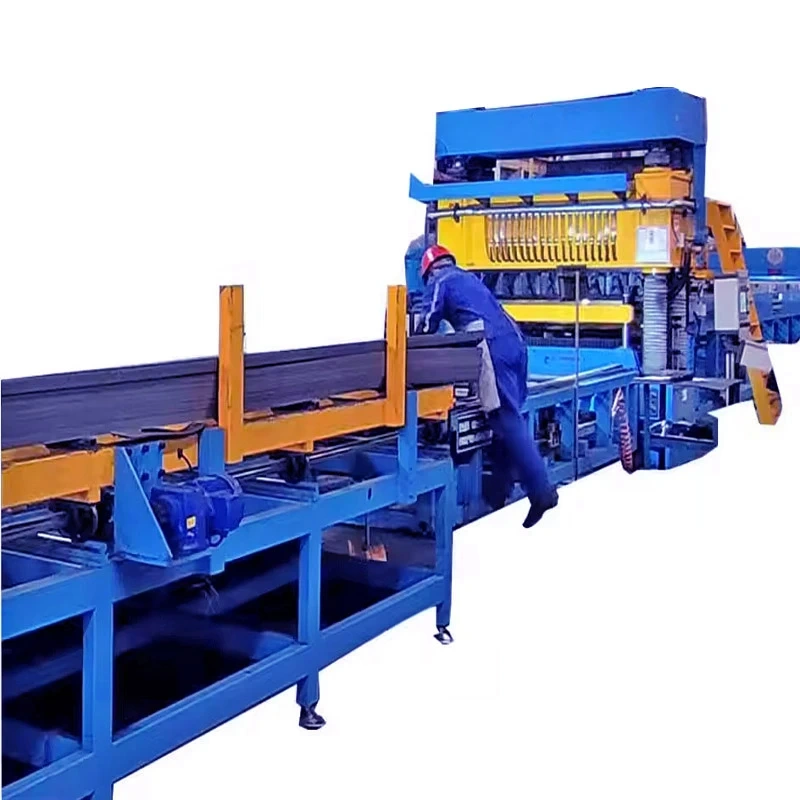

Steel Grating Welding Machine processes steel gratings with cross bar and flat bar.
Cross Bar Trimming Machine cuts off the cross bar out of grating sides.

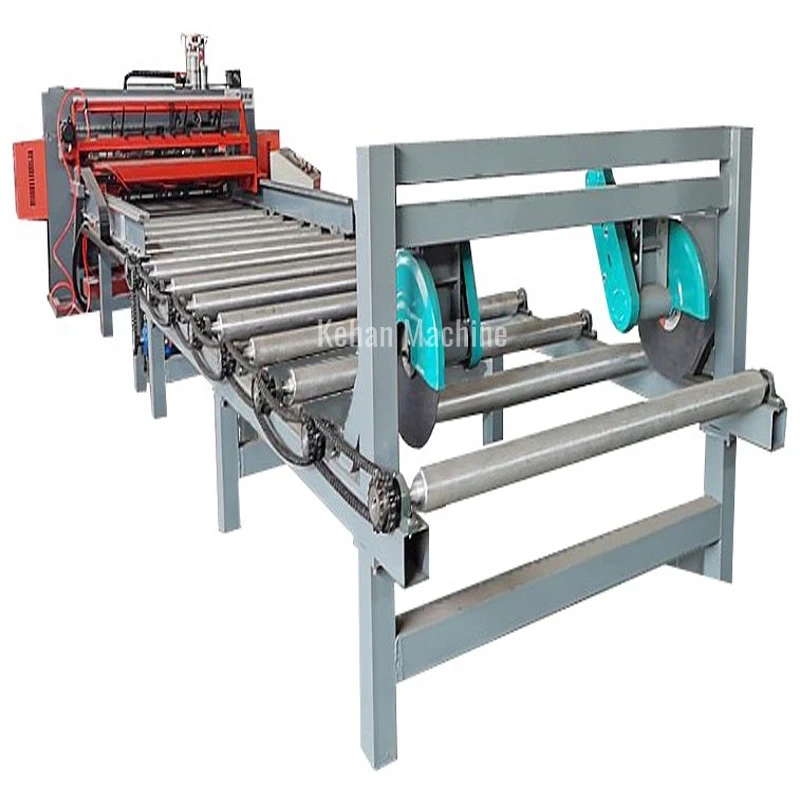

Cross Saw Cutting Machine divides big gratings into small pieces.
Twisted Square Bar Drawing Machine
High speed carbon steel wire rod with acid pickling, phosphating and saponification treatment shall be adopted. The equipment is used for rolling the end of round steel, drawing round steel into twisted square steel, straightening and cutting to length.
Cross Bar Trimming Machine
It cuts off the redundant cross bars on both sides of the welded steel grating. The equipment is equipped with automatic feeding of steel grating, manual adjustment of saw blade width, automatic cutting of redundant cross bar, and the steel grating cross bar meets the requirements of national standard Yb / t4001-2007 after end to end.
Cross Saw Cutting Machine:
The equipment has the functions of automatic feeding and accurate positioning of steel grating.
The equipment has automatic clamping and cutting functions.
The equipment adopts linear guide rail, which is wear-resistant and accurate.
Servo motor is used to feed the original board of the equipment, with high precision.
It has detection function of steel grating front cross bar, which can be switched on and off at will.
Steel Grating Application:
Steel gratings, have been widely utilized in various industries at home and abroad. They are mainly used as industrial platforms, stair steps, handrails, passage floors, railway bridge sides, high-altitude tower platforms, drainage ditch covers, manhole covers, road barriers, multi-story parking lots, fences for offices, schools, factories, enterprises, sports fields, garden villas, and can also be used as external windows of residential houses, balcony guardrails, guardrails for highways and railways, etc.
