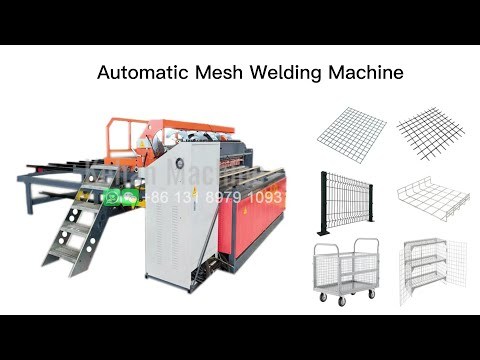

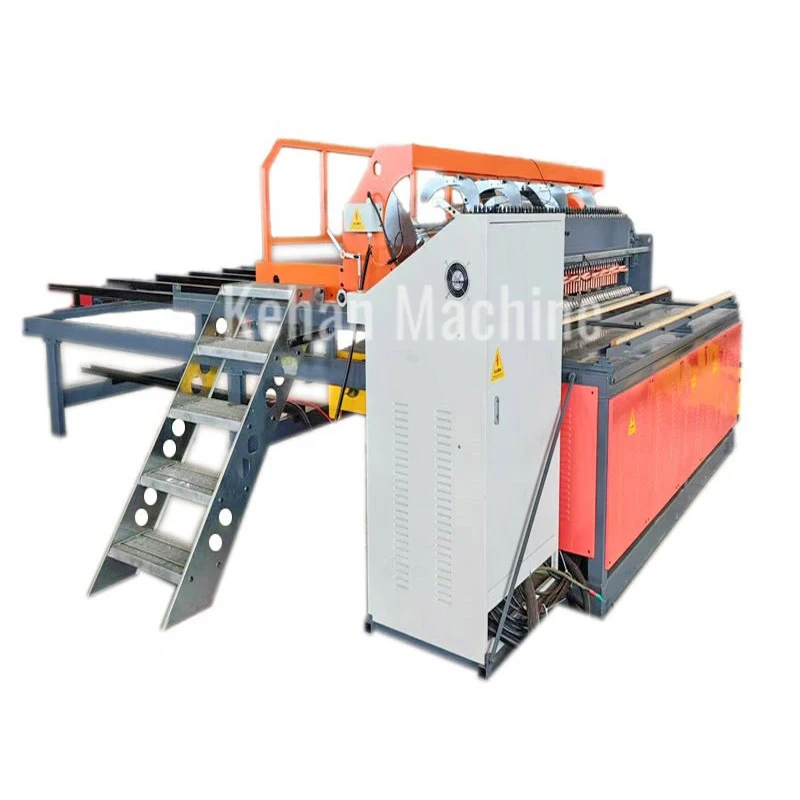

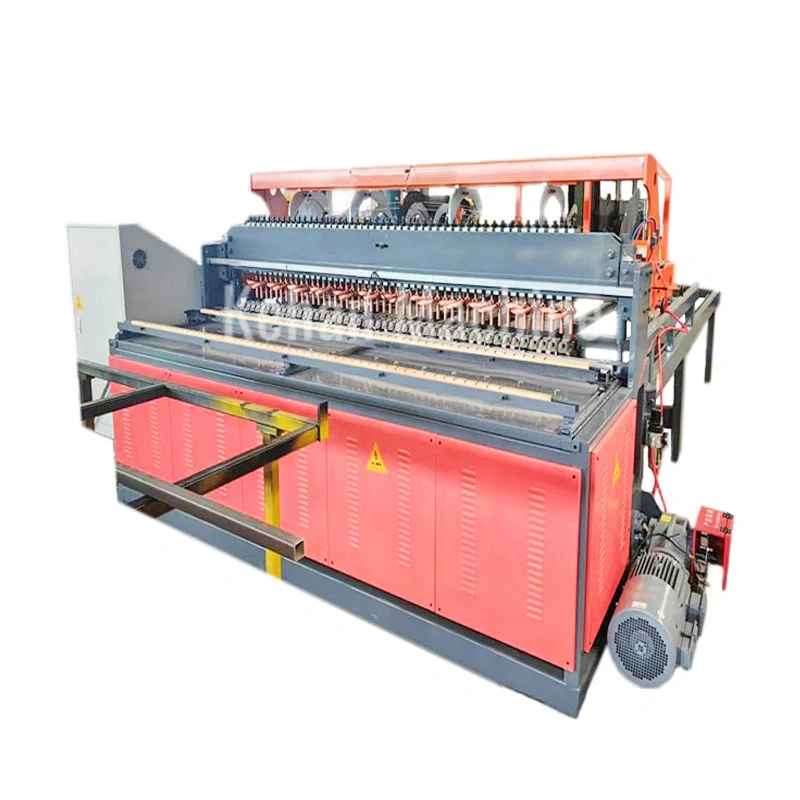

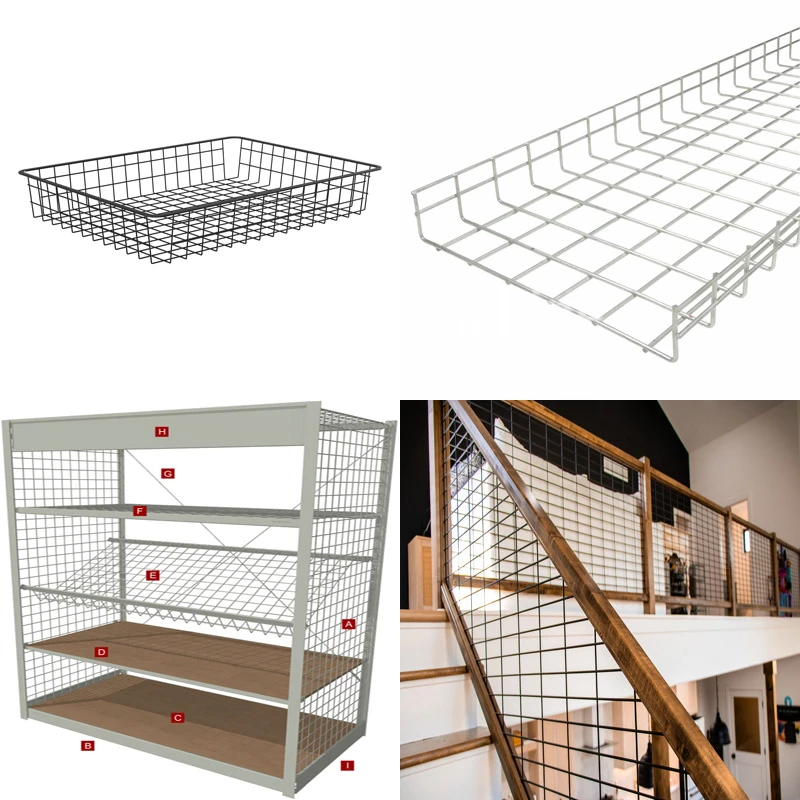

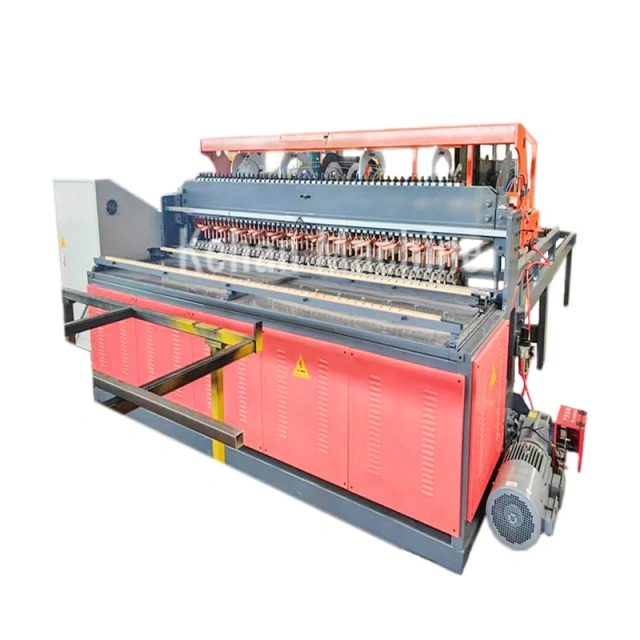

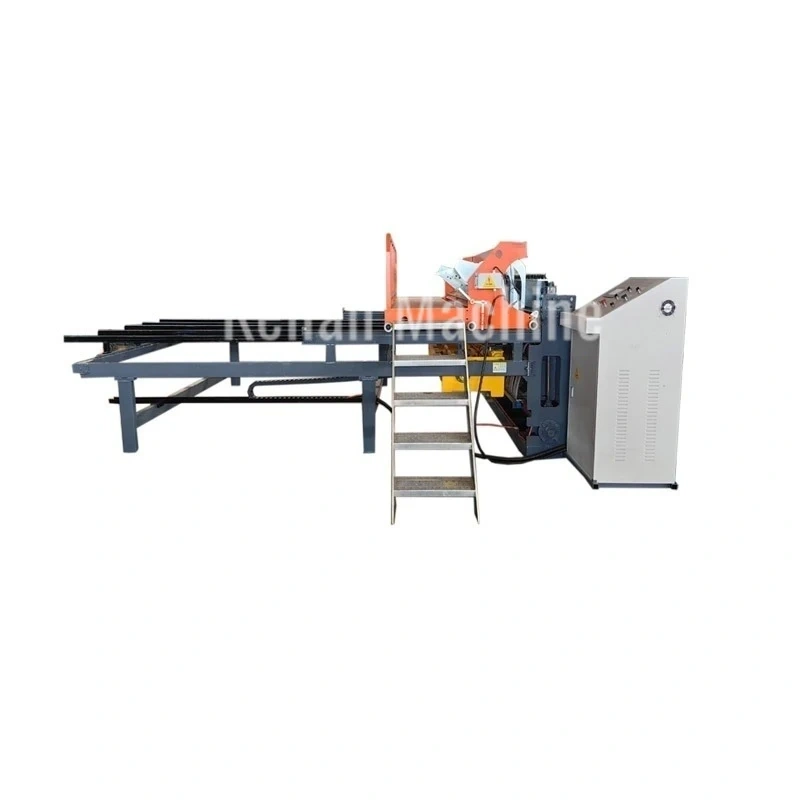

Fence Welding Machine is also named 3D Fence Panel Machine, or Security Fence Machine. Steel Wire Fence Machine generally makes welded wire mesh for fencing mesh, or cable tray, wire basket, etc.
Technical Parameter:
|
Model |
JK-2000 |
JK-2500 |
JK-3000 |
|
Mesh width |
Max.2000 mm |
Max.2500 mm |
Max.3000 mm |
|
Mesh hole size |
50-300 mm |
50-300 mm |
50-300 mm |
|
Wire diameter |
3.0-6.0 mm |
3.0-6.0 mm |
3.0-6.0 mm |
|
Welding speed |
40-80 Times/min |
40-80 Times/min |
40-80 Times/min |
|
Transformer |
150KVA*5(water-cooling) |
150KVA*6(water-cooling) |
150KVA*8 (water-cooling) |
|
Dimensions |
12 X 2.5 X 1.85 m |
12 X 2.5 X 1.85 m |
12 X 3.0 X 1.85 m |
|
Weight |
10500 KG |
13500 KG |
16000 KG |
Fence Production Line includes:
Fence Machine, Wire Straightening and Cutting Machine, Hydraulic Bending Machine.
Fence Welding Machine Features:
- CNC Technology.

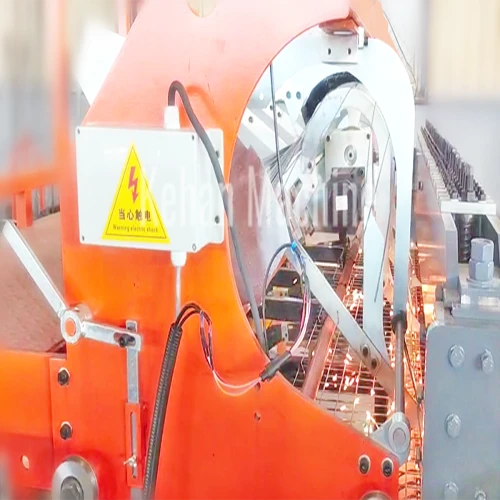

Specifically, mesh sizes are directly set via the touchscreen for intuitive operation. Importantly, a rotation disc is added to the cross-wire system – effectively preventing wire tangling.
- Precision Feeding System
First, both line and cross wires undergo pre-straightening/cutting automatically. Then, cross-wire adjustments on the screen easily reposition welding electrodes. Notably, roller length is programmable via the control panel for flexible mesh sizes.
- Adjustable Parameters
Simply, switch welding currents when using different wire diameters – maintaining consistent weld quality. Additionally, set production quantities for automatic machine shutdown upon completion.
- Performance Advantages
Thanks to optimized mechanics, finished meshes feature smooth surfaces and ≤2mm diagonal error. Compared to traditional models, this machine achieves 30% higher precision.
- Cooling Methods.

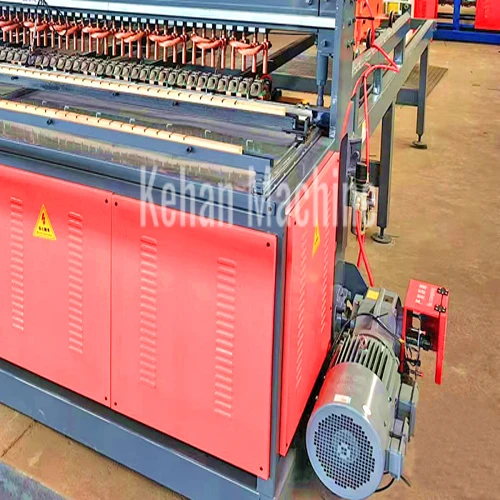

Welding transformers undergoing the welding blocks are connected to chiller for efficient cooling, especially in tropical regions or hot summer.
Fence Welding Machine Structure:

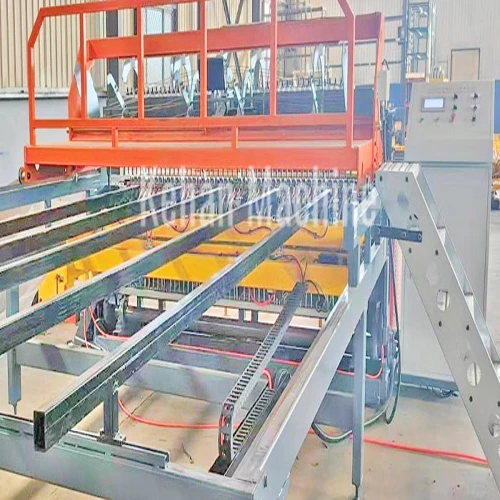

- Line Wire Feeding System
New design with quick wire feeding channel.
Mobile device facilitates electrode adjustment for mesh size changes.
- Cross Wire Positioning
Air cylinder to tidy up all cross wire and ensure no cross-wire spikes.
Magnets positioning wires on the solders quickly and accurately.

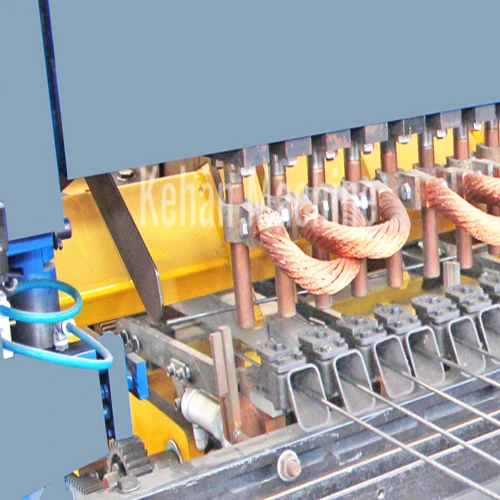

- Electrical System
Copper blocks replace soft copper leaves improving conductivity.
High-chromium copper electrodes extend lifespan by 50%
- Operational Efficiency
With integrated pre-straightening and automatic pulling, labor costs decrease by 40%. Moreover, the compact design allows easy relocation between job sites.

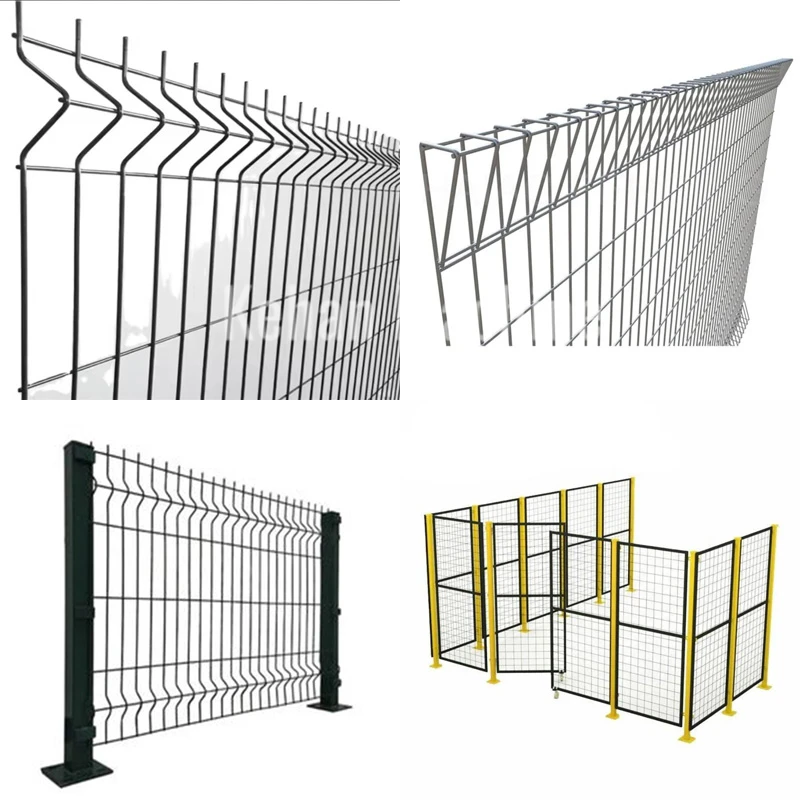

Welded Fence Application:
Wire mesh fence is a well - liked choice for a great variety of applications, from residential to commercial and industrial environments. This type of fence is manufactured from high - grade galvanized steel wire, which is welded into a three - dimensional fence panel. In this article, we'll offer a complete guide to 3D wire mesh fence, covering its merits, applications, and sturdiness.
