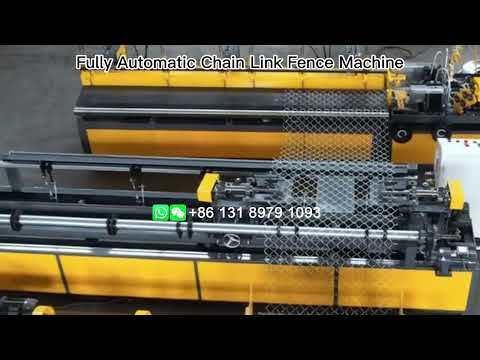

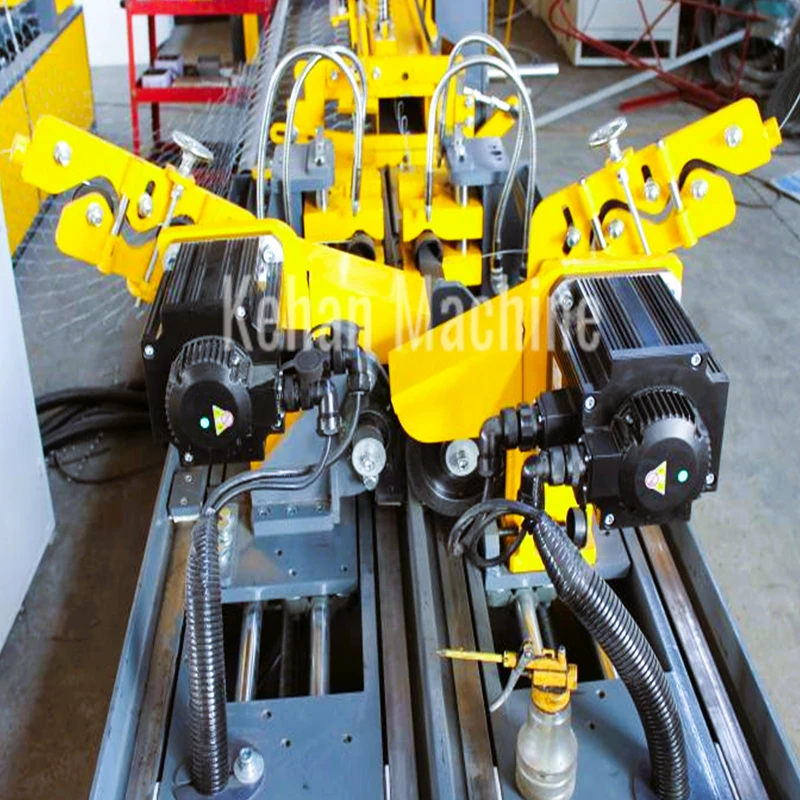

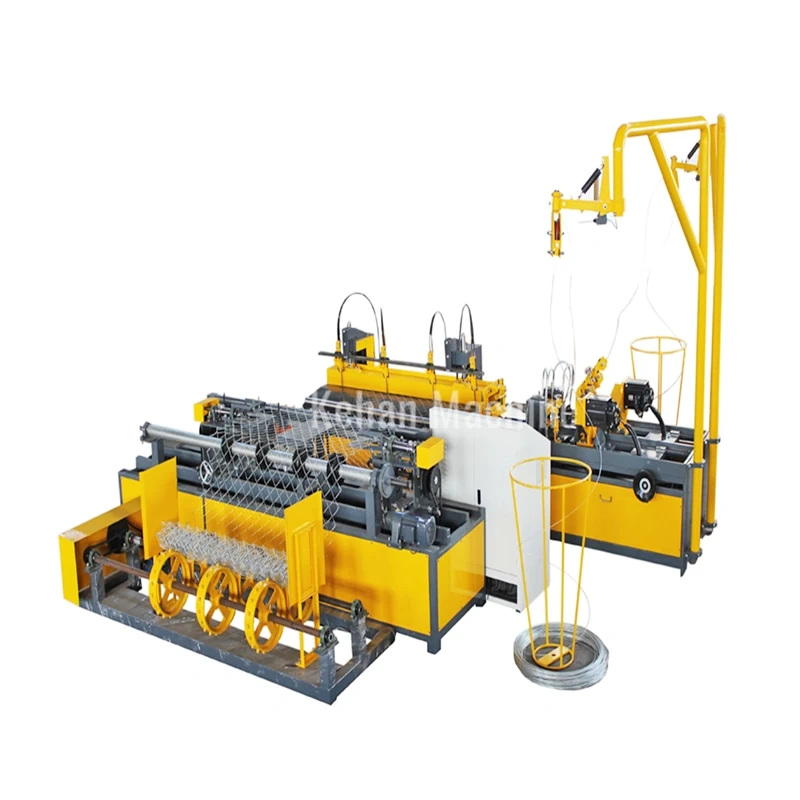

Chain Link Fence Machine is also named Chain Link Fencing Machine, Cyclone Fence Machine, Diamond Wire Mesh Machine. Diamond Mesh Machine automatically feeds twine wires at the same time. Cyclone Fence Machine adopts servo motor for high capacity.
Technical Parameter
|
Model |
GH1-3000S |
GH2-3000W |
GH2-3000S |
|
Wire diameter |
1.6-4mm |
2-4mm |
1.8-4mm |
|
Aperture |
25-100mm |
25-100mm |
25-100mm |
|
Fence width |
<3meters |
<3meters |
<3meters |
|
Welding speed |
<180M2/hour |
<180M2/hour |
<260M2/hour |
|
Wire feeding way |
One wire |
Two wire synchronously |
Two wire synchronously |
|
Control system |
HMI + PLC |
HMI + PLC |
HMI + PLC |
|
Overall Size |
4.5*4 *1.7m |
5.2*4.5*1.7m |
5*4.9*1.6m |
|
Weight |
2800kg |
3800kg |
3300kg |
Chain Link Fence Machine Features:
- HMI and PLC control, easy to operate.
- One machinery for different apertures, big range 25-100mm.
- Feed two wires synchronously, speed up to 260 square meters/hour.
- Fully automated chain link fence braiding machine, only one labor needed.
- Preset weaving length and the machine stop automatically after production is done.
- Electrical system from world-famous brand, fluent working, reliable performance.

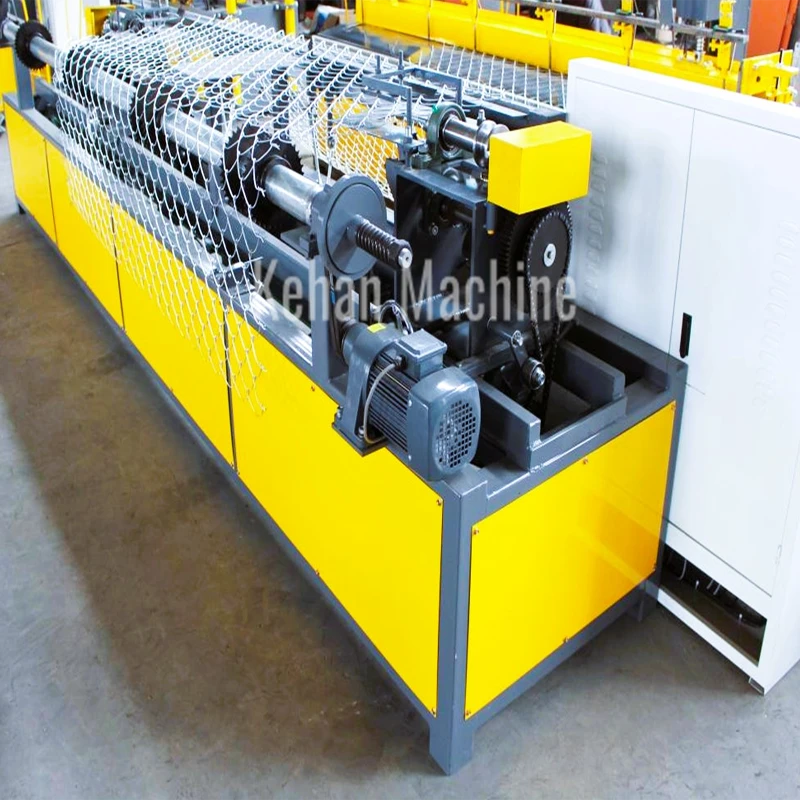

Chain Link Fence Production Line:

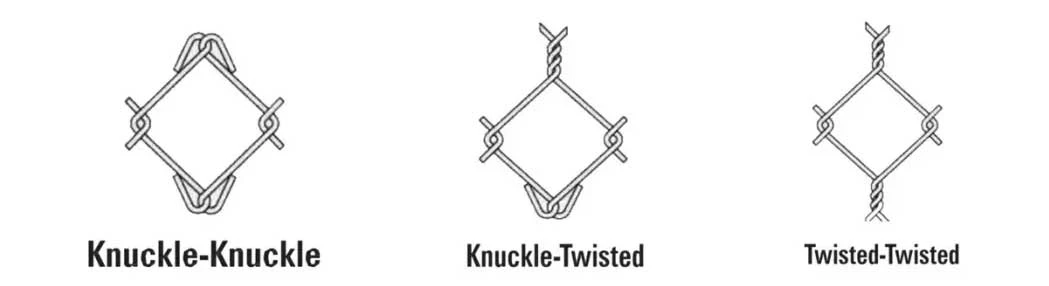

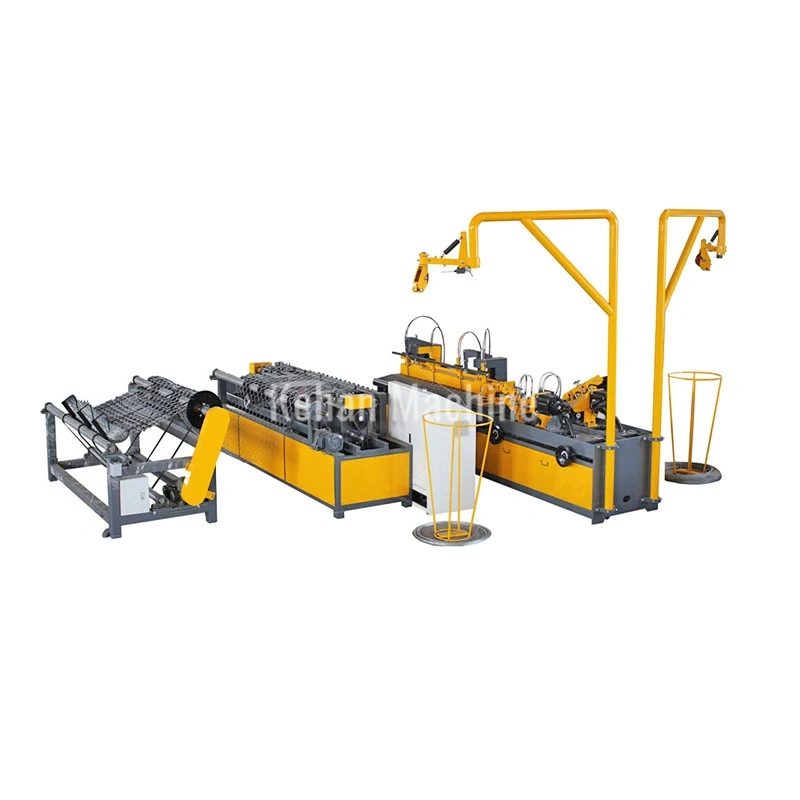

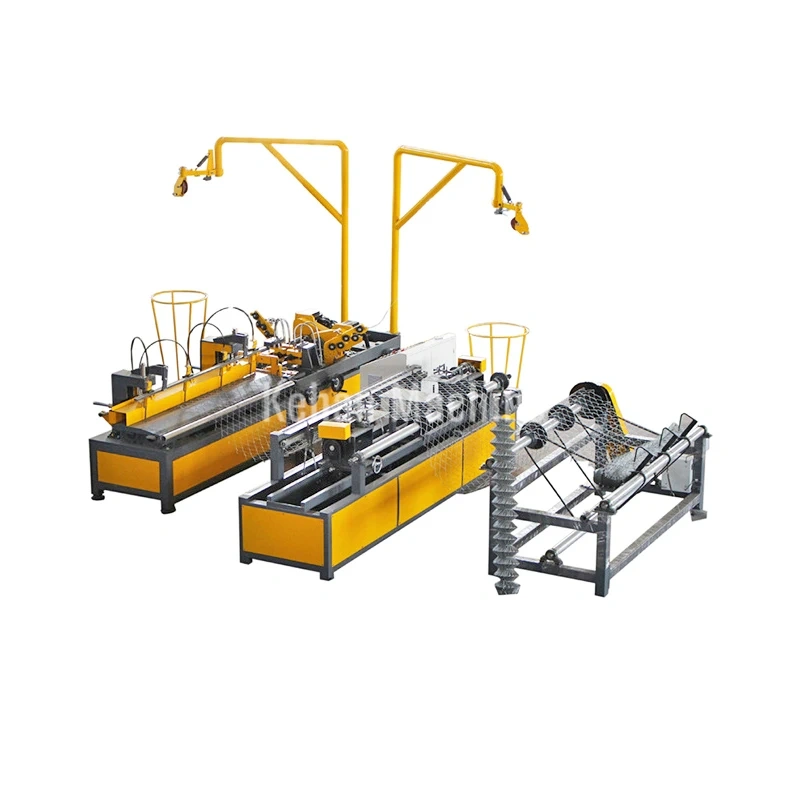

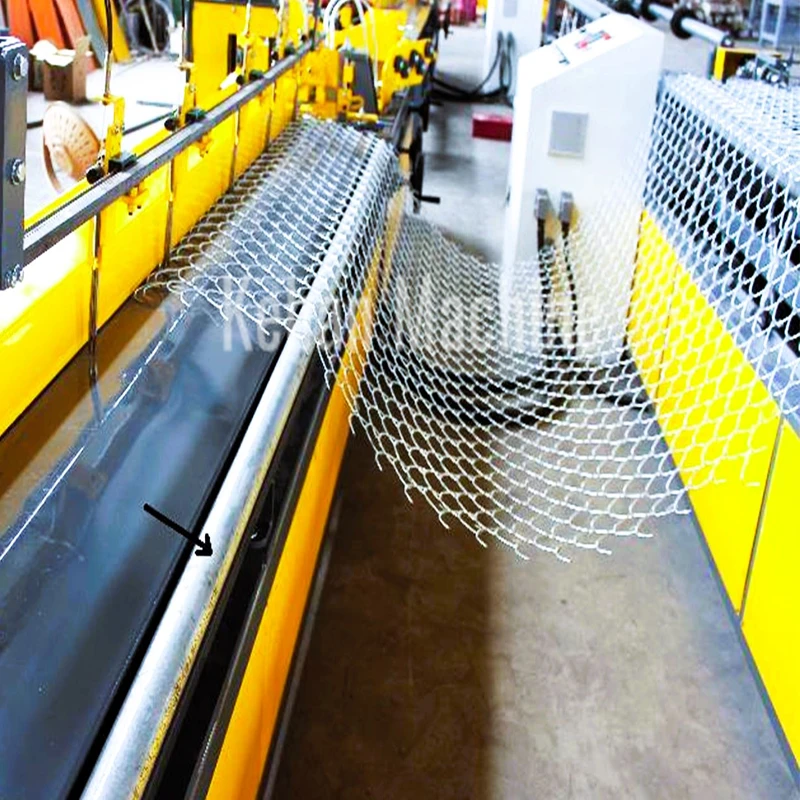

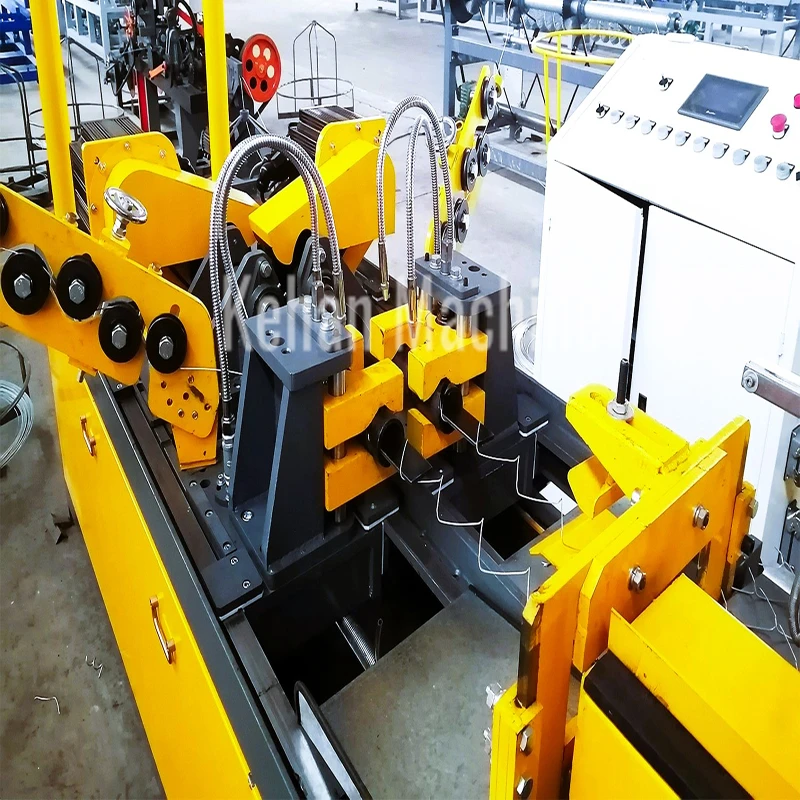

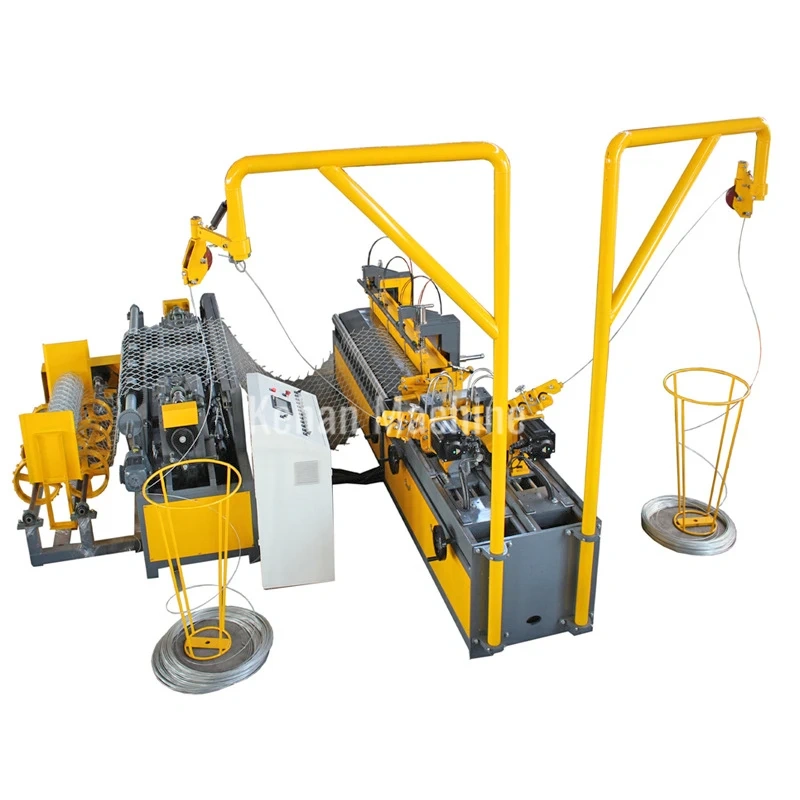

Chain Link Mesh Machine consists of wire spools, wire guidance, die, spiral forming unit, weaving unit, mesh boarder unit, mesh rolling unit, control cabinet. Furthermore, Chain Link Fence Machine can replace forming dies for diameter mesh size and make varied products. In addition, Chain Fence Mesh Machine works with knuckle and twisting device for three types of mesh boarder patterns. Therefore, Chain Link Fence Making Machine is low-cost project and suitable for small-business entrepreneurship.

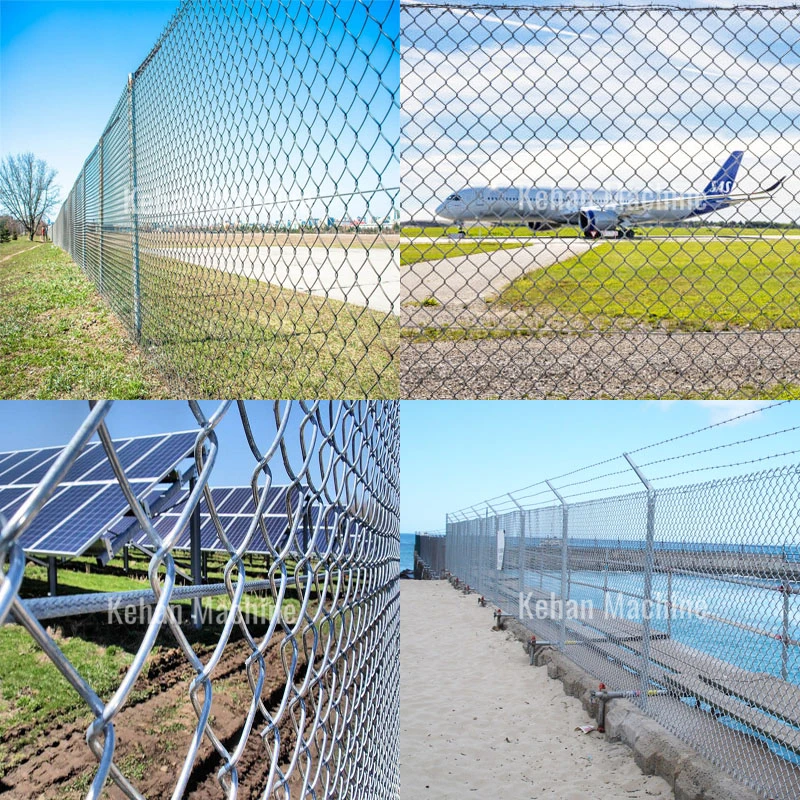

Chain Link Fencing Application:

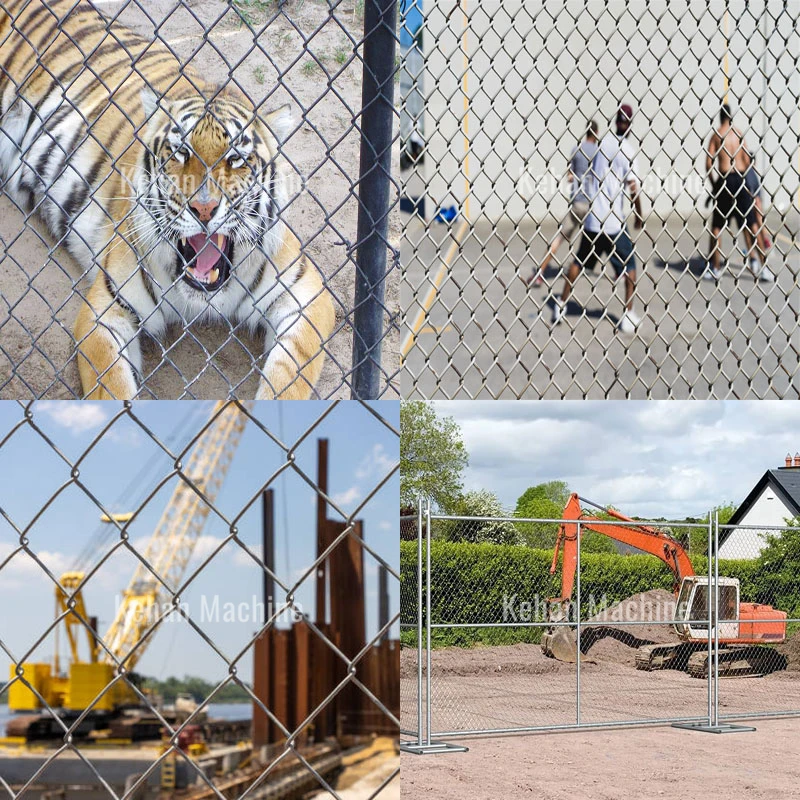

Woven chain link mesh is an elastic interwoven wire net with consistent and aesthetically pleasing meshes. Chain fence mesh has good resistance to impacts, elasticity, and corrosion resistance. Chain link fencing is commonly sighted in basketball courts, volleyball courts, tennis courts, and other sports facilities, as well as playground areas and educational campuses. Chain link fencing mesh is also named tornado fence and fencing netting. Chain link fence is also widely applied for breeding chickens, ducks, geese, rabbits, and for zoo fences, the protection of machinery, highway railings, and road green - belt safeguard nets. Lozenge wire mesh can also be employed as gabions to protect and support seawalls, hillslopes, roads, bridges, and reservoirs in civil engineering projects. It is a fine material for flood control and flood - prevention.
